THL100 100W卤钨灯光源 (推荐高校 光谱测试用 进口光源)

THL100 100W卤钨灯光源 (推荐高校 光谱测试用 进口光源)


 THL100 100W卤钨灯光源 (推荐高校 光谱测试用 进口光源)

关键词:进口钨灯,钨灯光源,光谱测试光源,光谱测试用钨灯,

100W钨灯,高稳定钨灯光源,紫外可见红外光源,全谱光源,白光光源,

复合光源

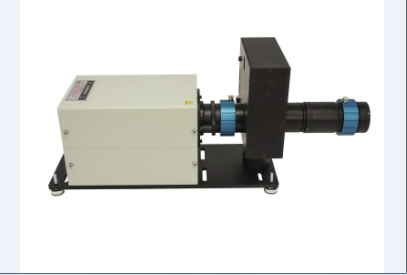

THL100 100 W Tungsten Halogen Light Source



THL系列光源采用100W灯泡(6001)作为照明光源,比孤光灯更稳定,

且不会发出强紫外光和臭氧,平滑的曲线输出,更适合光谱应用。

The Light Source THL100 uses the 6001 100 W TH lamp as its

illumination source. This Tungsten Halogen lamp exhibit better

output stability than arc lamps and do not produce strong UV light

emission or toxic ozone. Their smooth spectral output curve make

them useful for radiometric and photometric applications.

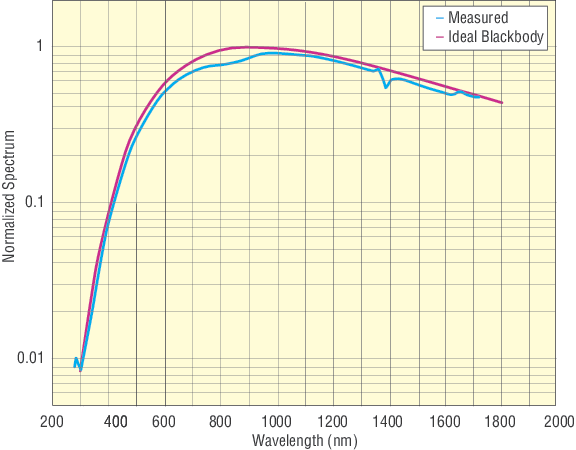

光谱曲线(Spectra





特点:

简单光学耦合

完全集成、即插即用

光强可调

手动光开关



Features

Easy Optical Coupling

Fully Integrated, Plug and Play System

Adjustable Lamp Intensity

Manual Shutter





技术参数(Technical Specs

灯泡类型(Lamp Wattage):TH卤钨灯

电功率(Lamp Wattage):100 W

平均寿命(Average life):500 h

发散角(Collimation Angle):3.5 °

F/#F/4

透镜材料(Lens Material):Fused Silica

透镜范围(Lens Transmittance Range):200-2500 nm

Light Ripple< 0.07 % rms

输入(Power Requirements):200-240 VAC, 50/60 Hz

滤光片尺寸(Filter Size):25.4 mm

滤光片轮(Filter Wheel):Six Positions (Order Filters Separately)



Manual Shutter

A manual shutter is integrated into the THL100 to allow the user to

close off the light path, blocking any light output from the system.

This allows the user to be protected from UV radiation when light

output is not required, such as warming up the lamp while preparing

a setup or making a minor change in setup, without frequent and

unnecessary restarts of the lamp.



光学开关

光学开关用于关闭光路,不需要光照时保护使用人员免受紫外线辐射

比如:预热光源、安装光学元件,无需频繁开关光源。



Integrated Six Position Filter Wheel

A filter wheel is integrated into the assembly of the THL100.

Up to six order-sorting or neutral density filters can added

(1.0 in or 25.4 mm diameter, 0.2 in. or 6 mm thickness) and filters

can be changed.

六档滤光片轮

六档滤光片轮,可以安装1-6个不同滤光片,直径25.4mm1英寸),便于滤光片。

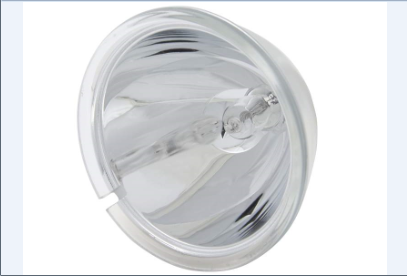

100 W TH lamp

100W卤钨灯灯泡

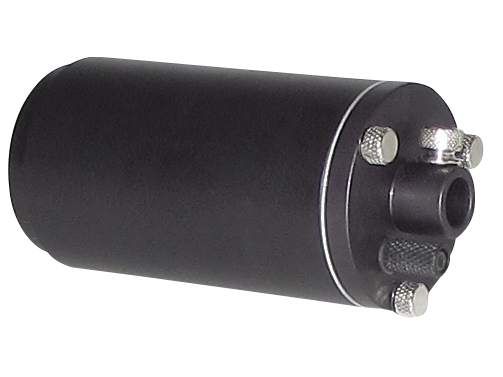

光、光纤耦合接口(Optical Coupling Accessories

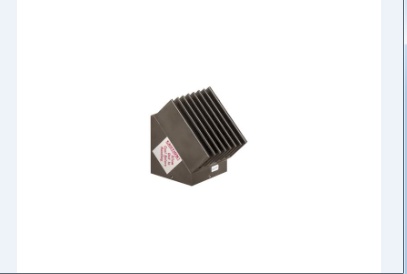

360°光路转向器

360°旋转,镀ALMgF2增反膜,光谱范围200-2500nm,用于宽谱输出。





Full Reflector Beam Turning Mirror, 200-25,00 nm

The Full Reflector Beam Turning Mirror is are coated with an AlMgF2

coating optimized to increase reflectivity in the ultraviolet. It is useful

from 200 nm to 30 μm spectral range. Use it when broadband output is needed.
