主要应用

高能二管泵浦，全固态，　Q-SWITCHEDLASER

高能二管泵浦固体，　q开关激光在532 nm的特性

　单脉冲能量高、短脉冲，时间和峰值功率高,

　广泛用于PIV、生活,库,icp，科学研究、激光加工、军事、等等。

产品特点

用于透明固体物质LIBS光谱检测的激光器。具有窄脉宽、高单脉冲能量等特点。

窄脉宽、高能量，可以有效击穿各类气体，适用于气体及液体样品LIBS光谱检测

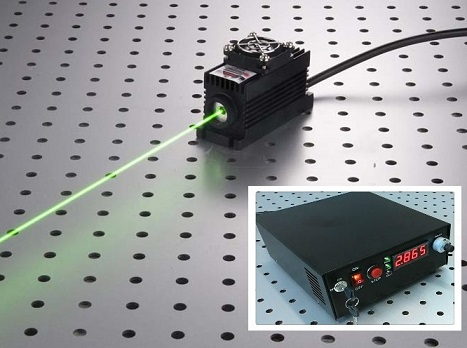

532nm LIBS(2~20mJ0)激光器

NBET-532-Q/2~20mJ

HIGH ENERGY DIODE PUMPED ALL-SOLID-STATE Q-SWITCHEDLASER

High energy diode pumped all solid state Q-switched laser at 532nm has the

features of high single pulse energy，short pulse duration，and high peak power，

which is widely used in PIV, LIF, LIBS, ICP-MS scientific research, laser processing, military, and so on.

技术参数

avelength (nm)                           532±1

Operating mode                           Electro-optics Q-switched

Single pulse energy (mJ)                     2      5     10    15    20

Rep. rate (Hz)                             1000    1~100 (adjustable)

Energy stability

Beam divergence, full angle (mrad)  ~2

Beam diameter (mm)                     ~1.5 ~2 ~2.5 ~3 ~4

Warm-up time (minutes)<15

Beam height from base plate (mm) 55

Cooled method    Water Cooled

Operating temperature (℃) 15~35

Power supply (220/110VAC) PSU-NBET-Q-II(3U) @1KHz , PSU-NBET-Q-I @100Hz

Expected lifetime (pulses)109

Warranty 1 year

Available options Other repetition rates:100~1000Hz; Jitter:~1ns(Sdev); Accessories

选型指南
