532nm荧光激光器

 532nm荧光激光器

主要应用

  拉曼光谱，光谱分析，光谱定标，荧光激发，微光检查，PIV，激光测量及检测，科学实验，准直，光学仪器等。

产品特点

  高稳定型，高可靠性，操作简便；

  光斑质量好，

  电源自带过热、限流保护电路，可外接高速调制；

  全球不同环境的充分考验，石英寿命10000小时，

  低噪音

  采用优质光纤耦合输出，高耦合效率；

  适用于荧光激发，光谱分析，激光制版等。

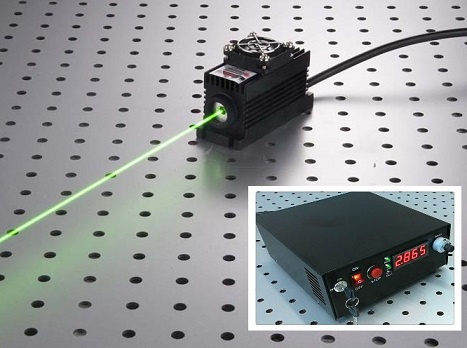

532nm荧光激光器

NBET-FN-532/1~1500mW

LD PUMPED ALL-SOLID-STATE GREEN LASER AT 532nm All solid state 532nm green laser is made features of high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.

Wavelength (nm) 532±1

Operating mode CW

Output power (mW)> 1,5,10,20,…1500

Power stability (rms, over 4 hours) <1%, <3%, <5%

Transverse mode TEM00

M2 factor <1.2

Beam diameter at the aperture (1/e2, mm) <2.0

Beam divergence, full angle (mrad) <1.5

Beam height from base plate (mm) 27.4

Polarization ratio  >100:1 Horizontal±5 degree (Vertical Optional)

Warm-up time (minutes) <10

Pointing stability after warm-up (mrad) <0.05

Operating temperature (℃) 10~35

Power supply (90-264VAC)                    PSU-III-LED          PSU-III-FDA

Modulation optionTTLon/off, 1Hz-1KHz,1KHz-10KHz 10KHz-30KHz; and Analog modulation option

Expected lifetime (hours) 10000

Warranty 1 year
