经济型虚拟光功率计

经济虚拟光功率计
兼容光电二管探测器和18P系列热电堆探测器
小巧的外形理想选择

虚拟功率计易于使用且足够直观，在几分钟内即可掌握。功率计内包括一根USB电缆，用于连接您的PC 或笔记本电脑，并为本机提供电源。

软件的内置功能包括一个完整的统计软件包，可以让您在线形图和直方图中进行选择。使用同一块屏幕，用户可以设置数据采样参数。能够轻易从测量干扰中恢复。例如，可以取消统计缓冲区内的后一个值或后一个时间点，使您无需停止工作即可继续使用。同样提供保存数据、保存统计结果或保存两者等诸多选项。

测量仪装配有DB15 输入连接器，实现高功率探测器。

Power Range with 818P Series Detectors	1 mW to 10 kW
Analog Output	0-2 V full scale, mono audio 1/8" jack
Accuracy ()	±0.5 % Full Scale
Dimensions ()	3.4 x 2.3 x 1.2 (86 x 58 x 27)
Weight ()	0.23 (0.106)

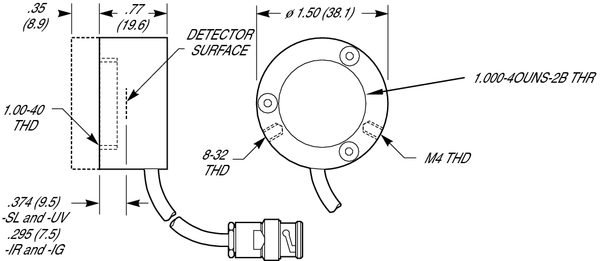

选配探头（表1）：

818IG	InGaAs Detector, 800-1650 nm, DB15 Calibration Module
818IR	Germanium Detector, 780-1800 nm, DB15 Calibration Module
818SL	Silicon Detector, 400-1100 nm, DB15 Calibration Module
818UV	UV Detector, 200-1100nm, DB15 Calibration Module

选配探头（表2）：

货号	概述
918DIG1IR	探头InGaAs Detector,光谱 800-1650 nm, OD1 Attenuator, DB15
918DIG2IR	探头InGaAs Detector, 光谱800-1650 nm, OD2 Attenuator, DB15
918DIG3IR	探头InGaAs Detector, 光谱800-1650 nm, OD3 Attenuator, DB15
918DG1IR	探头Germanium Detector, 光谱780-1800 nm, OD1 Attenuator, DB15
918DG2IR	探头Germanium Detector, 光谱780-1800 nm, OD2 Attenuator, DB15
918DG3IR	探头Germanium Detector, 光谱780-1800 nm, OD3 Attenuator, DB15
918DSI1VIS	探头Silicon Detector, 光谱400-1100 nm, OD1 Attenuator, DB15 Connector
918DSI2VIS	探头Silicon Detector, 光谱400-1100 nm, OD2 Attenuator, DB15
918DSI3VIS	探头Silicon Detector, 400-1100 nm, OD3 Attenuator, DB15
918DUVSI3	探头UV Silicon Detector, 200-1100 nm, OD3 Attenuator, DB15

选配探头（表3）

货号	参数描述
818IR	探头818 Ge Metal Wand Detector, 光谱780-1800 nm,OD3 Attenuator, 接口DB15
818UVSI	探头818 UV Metal Wand Detector, UV-Silicon,光谱 200-1100 nm, OD3, 接口DB15
818SI	探头818 Si Metal Wand Detector, 光谱400-1100 nm, OD3 Attenuator, 接口DB15
918DIR	探头Wand Style Germanium Photodetector, 光谱780-1800 nm, OD3 Attenuator,接口 DB15
918DIR	探头Wand Style Silicon Photodetector, 光谱400-1100 nm, OD3 Attenuator,接口 DB15
918DUVSI	探头918D UV-Si Wand Detector, 光谱200-1100 nm, OD3 Attenuator, 接口DB15

选配探头（表4）：

货号	描述
819DIR2	积分探头Integrating sphere detector, diverging beam, 尺寸2", 910-1650 nm
819DIR3.3	积分探头Integrating sphere detector, diverging beam, 尺寸3.3", 光谱910-1650 nm
819DIR5.3	积分探头Integrating sphere detector, diverging beam, 尺寸3.3", 光谱910-1650 nm
819DIR3.3	积分探头Integrating sphere detector, diverging beam, 尺寸3.3", 光谱910-1650 nm
819DIR3.3	积分探头Integrating sphere detector, diverging beam, 尺寸3.3", 光谱910-1650 nm
819DIR3.3	积分探头Integrating sphere detector, diverging beam, 尺寸3.3", 光谱910-1650 nm
819DIR3.3	积分探头Integrating sphere detector, diverging beam, 尺寸3.3", 光谱910-1650 nm
819DIR3.3	积分探头Integrating sphere detector, diverging beam, 尺寸3.3", 光谱910-1650 nm

选配探头（表5）：

货号	描述
819CIR2	Integrating sphere detector, collimated beam, 2", 800-1650 nm
819CIR3.3	Integrating sphere detector, collimated beam, 3.3", 910-1650 nm
819CIR5.3	Integrating sphere detector, collimated beam, 5.3" sphere , 860-1650 nm
819CIR2N	Integrating sphere detector, collimated beam, 2", 400-1100 nm
819CIR3.3N	Integrating sphere detector, collimated beam, 3.3", 400-1100 nm
819CIR5.3N	Integrating sphere detector, collimated beam, 5.3", 400-1100 nm
819CUVVIS2	Integrating sphere detector, collimated beam, 2", 200-1100 nm
819CUVVIS5.3	Integrating sphere detector, collimated beam, 5.3", 220-1100 nm
